AUTOMATIC WATER LEVEL CONTROLLER CUM INDICATOR

Using state-of-the-art Digital Technology, an extremer reliable, having A.C sensing devices for trouble-free performance and longer life.

It works as a person who is responsible to SWITCH ON / OFF the motor

It serves 24 hours of water supply to Overhead Tank without letting it dry.

FEATURES

  • No manual supervisor
  • Variable level sensors
  • Feather touch keys
  • Optional manual mode
  • Digital Voltage and longer indications
  • A.C. Sensing - for longer life of sensors
  • Need a button to switch ON the motor irrespective level of water in Overhead tank

WORKING PRINCIPLE

SWITCHING ON THE MOTOR

  • When water in Overhead Tank comes below prefix level with water in the sump is above a minimum level.

SWITCHING OFF THE MOTOR

  • When water reaches to the maximum level in Overhead Tank
  • When water in sump goes prefixed low level or foot valve level
  • When water is not pumping to Overhead Tank due to the dry running of a motor
  • When there is High / Low voltage

ADVANTAGES

  • Maintains the constant level of water in Overhead Tank
  • Avoids overflow of water
  • Pumps surplus water from thus increases storing capacity of a sump
  • Avoids motor burnouts
  • Saves water, motor, power and time
  • Auto switch OFF of the motor when there is no water in a sump
  • Motor protection in case of High / Low voltage fluctuations
  • Dry run prevention of motor

APPLICATIONS

  • House
  • Office
  • Apartments
  • Commercial Complex
  • Hotels
  • Hospitals
  • Drain Water Pumping
  • Factories
  • Pioneer provides custom built / tailor-made in “Control Solutions" or various domestic / industry needs

Models Available

  • Single Phase (230V, 1Q) motors
  • Three phase (440V, 3Q) motors
  • 1Q & 3Q submersible starter pumps
  • Auto change over
  • Compressors
  • Drain water pumps
  • Industrial logic control motors

QUALITY ASSURANCE POLICY

By adopting TQM (Total Quality Management) at all levels of materials management, manufacturing process and testing procedures to assure customers the highest standard of quality, long product life. zero maintenance and best functional efficiency.

Pioneer has got the Quality Policy which ensures value-added products and service at all time.

TECHNICAL SPECIFICATIONS

  • Dimension: 185mm x 135mm x 60 mm
  • Input Voltage: 230 volts AC, 50 62 193
  • Motor production: 180 volts single phase
  • Power Consumption: 3 Watts
  • Sensing Voltage: 12 volts 3
  • Sensing Current: 10 microamps AC
  • Power on delay time: 90 sec
  • Dry run delay time: 120 seconds
  • Relay Rating: 30 Amps AC 23oV double change over

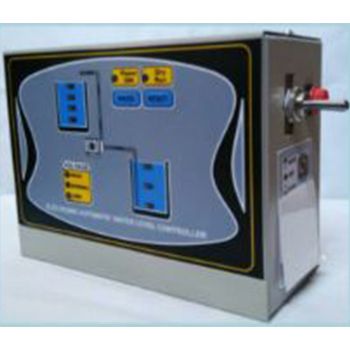

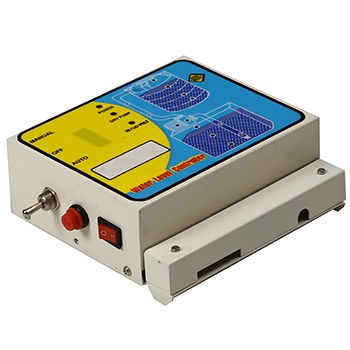

BORE WATER LEVEL CONTROLLER

  • 2 Tank option Sensor for OHT - 4 level
  • Inbuilt option for both 1 Phase & 3 Phase

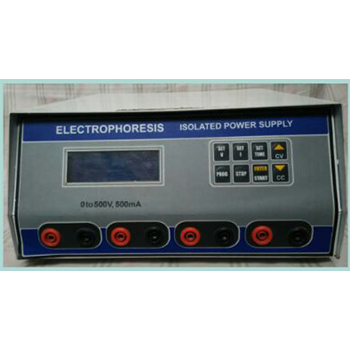

ISOLATED ELECTROPHORESIS POWER SUPPLY

  • Bright LCD display
  • range 0 - 500 V ,0 - 500 ma
  • Set Value & Actual value display
  • Constant voltage
  • constant current modes
  • Time: 1minute to 24 hours
  • 16 programmes can be saved

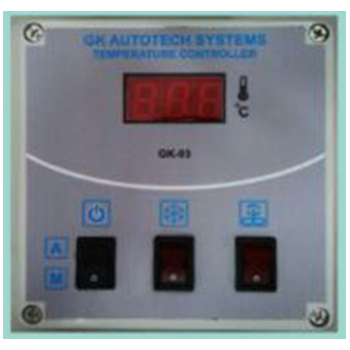

IP65

  • IP 65 rated enclosure
  • 0.1 c resolution, 0.3 c accuracy
  • both Composers & Aggressor OIP
  • Auto & Manual operation

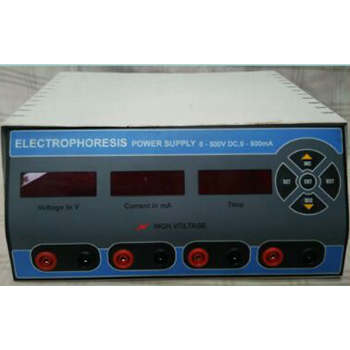

NON ISOLATED ELECTROPHORESIS POWER SUPPLY

  • Bright LED display
  • range 0 - 500 v ,0 - 500 ma
  • Set value & Actual Value Display
  • Constant Voltage & Constant
  • Current modes
  • Time: 1minute to 24 hours

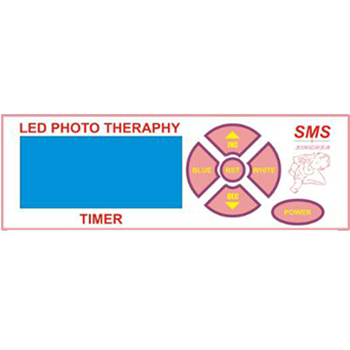

LED PHOTO THERAPY UNIT

  • Intensity
  • 6 - 50 microwatts Inmlcumml m watt
  • adjustable intensity
  • A digital timer of LED usage time
  • Wavelength should be 450 - 460 nm
  • Electrical devices compatible with 220-24oV, 50 I 60 Hz power input

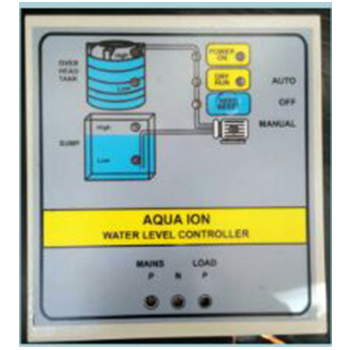

ECONOMY WATER LEVEL CONTROLLER

  • Sensor for
  • Sump & OHT
  • Sump 2 level
  • OHT - 2 level
  • OIP 1 HP

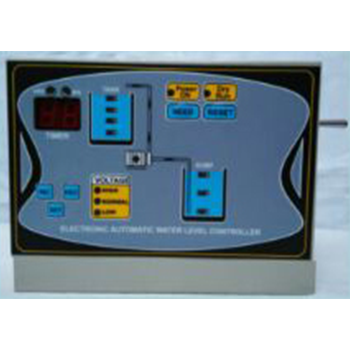

TIMER WATER LEVEL CONTROLLER

  • Inbuilt cyclic Timer for low water Borewell
  • 2 Tank option
  • Sensor for
  • OHT - 4 level
  • Inbuilt option for both 1 Phase & 3 Phase

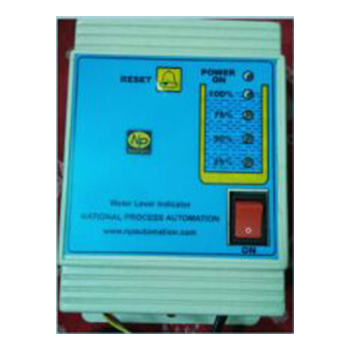

WATER LEVEL INDICATOR

  • 4 level indication
  • Alarm for a tank full
  • Alarm for tank empty
  • alarm mute button

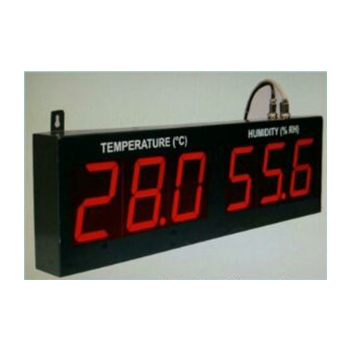

TEMPERATURE HUMIDITY INDICATOR

  • 4” chatter size
  • 0.10 /0.1% Rh resolution
  • 0.3 c /0.5% Rh accuracy
  • 4 to 20ma retransmission

WATER LEVEL INDICATOR

  • 10 level Indication
  • Alarm for tank full
  • Alarm for tank empty
  • alarm mute button

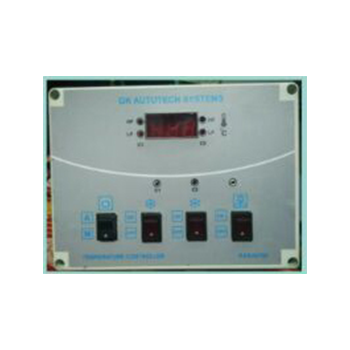

MILK TEMPERATURE CONTROLLER

  • IP 65 Rated Enclosure
  • 0.1 c Resolution
  • 0.3 c Acurrcery
  • 2 Composers & 1 Aggressor O/P
  • Auto & Manual operation
  • High pressure low pressure trip

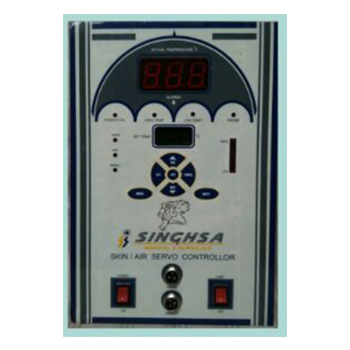

RADIANT HEAT WARMER

  • Servo Control Facility
  • A Micro Processor Technology
  • Feather Touch Controls
  • Programmable High
  • Temperature cut-off
  • Audio I Visual Alarms for Fault
  • Self Diagnostics of its Faults and Functions
  • Control accuracy +/- 0.2 c

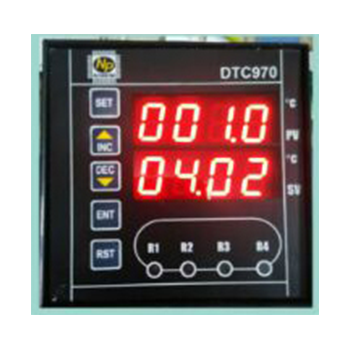

TEMPERATURE CONTROLLER SECOND

  • 96 X 96 SIZE
  • 0.1 c resolution , 0.3 c accuracy
  • Universal IIP ,Relay ISSR O/P
  • 2 Composers & 1 Aggressor O/P

TEMPERATURE CONTROLLER

  • 96 X 96 SIZE
  • 0.1 c resolution , 0.3 c accuracy
  • Both Timer & Temperature Controller
  • Relay ISSR OIP

TABLET COUNTER

  • Number of punch selectable
  • Inbuilt production speed counter

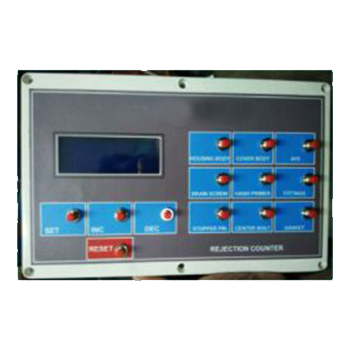

REJECTION COUNTER

  • Swift wise rejection memory
  • LCD display customized front panel

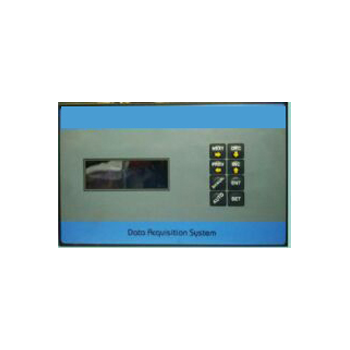

DATA LOGGER

  • 16 Channel Universal IIP
  • J/k/R/S/T/N/PT-100/mv/0 to 10V/ 4 - 20ma
  • Memory 1530 samples, RS 232/485 Interface
  • Windows Based S/W for Tamper
  • Proof Data Acquisition

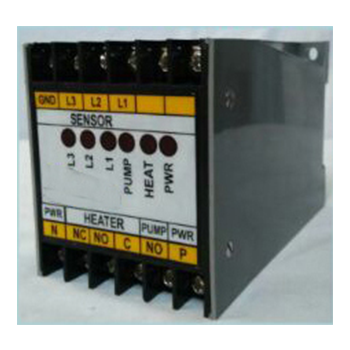

BOILER AUTOCLAVE CONTROLLER

  • AC sensing
  • Pump O/P: 1 HP
  • Heater O/P: 2KW
  • 230V AC Power

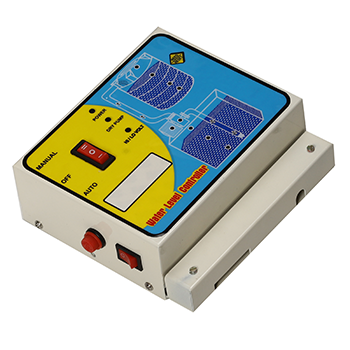

SUMP MOTOR

BOREWELL

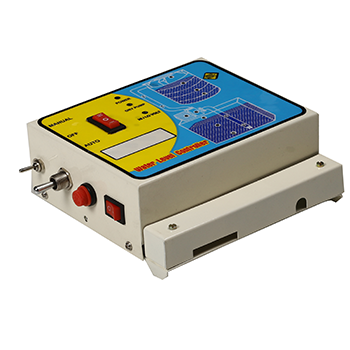

SUMP AND BORE

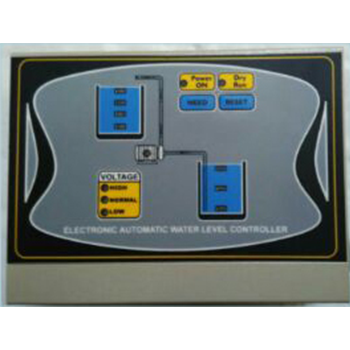

SUMP WATER LEVEL CONTROLLER

  • 2 Tank option
  • Sensor for
  • Sump & OHT
  • Sump 3 level
  • OHT - 4 level
  • O/P 1 HP / 2HP

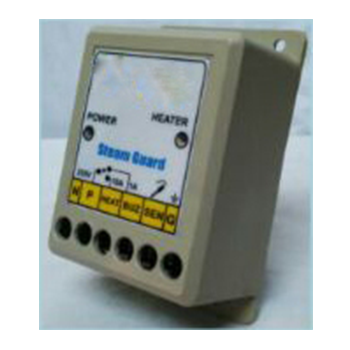

STEAM CONTROLLER

  • AC sensing
  • Heater O/P: 2KW
  • 230V AC Power

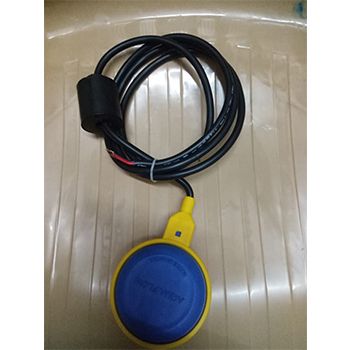

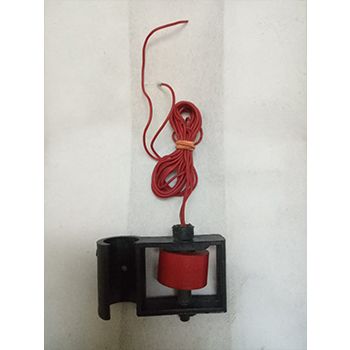

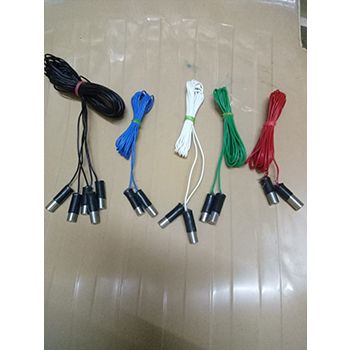

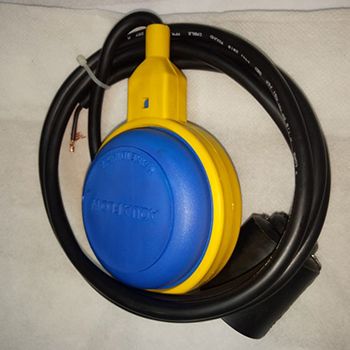

Floating Sensors
